Product Details:

Place of Origin: China
Brand Name: Yingmi
Certification: CE,RoHS
Model Number: 008B

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: packed in carton box
Delivery Time: 7days
Payment Terms: L/C,Paypal, T/T, Western Union
Supply Ability: 2000 pieces per week
Detailed Product Description
Product: Tour Guide Device Color: Black
Componet: Transmitter&Receiver Power: Lithium Battery
Feature: Bi-directional Application: Teaching/Traning
High Light:

Conference Interpreting Equipment

,

Portable Translation Equipment

The 008B bi-directional wireless tour guide system with excellent sound effect

TuMan 8 series device,apply to: wireless team interpretation,simultaneous interpretation,etc.; Mainly used for manned interpreatation: can manual use,also can play pre-recorded audio,that need human to control. We have many models for your choice!
 What's this|

TuMan 008B tour guide system is detrusion by HUMANTEK CO.,LTD,The system adopts the international advanced wireless amplification technology,Use The Wireless Bi-directional tour guide system,the narrator and the audience can interact eachother,can be realized within the team can ask one answer,everyone can hear,the function to fill a gap in the industry!

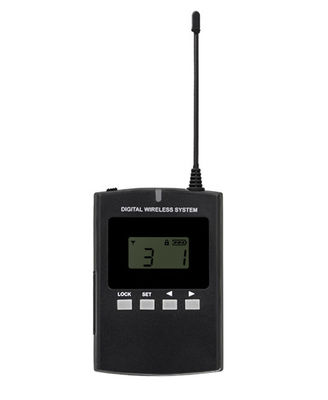

The dvice contains Transmitter and Receiver;
audio guide

TuMan 008B product feature:



1. Unique two-way radio: avoid one-way explain the poor interaction;

2. Far transmission distance:open field >= 280 m;

3. The through wall effect is good: through concrete wall,brick wall penetration effect;

4. The transmission effect to international level,the leading domestic:Using core technology sound processing,perennial export Europe and the United States and other countries!

audio guide
Appearance can specify the color, printing logo;
or redesign shell.(Larger quantities)

 How to use|


Using graphic:

TuMan Auto Tour Guider

Accessories:

008B  - Directional Simultaneous Interpretation Equipment Wireless Tour Guide System Two Way Tour Guide 3
Headphone(EP01)


008B  - Directional Simultaneous Interpretation Equipment Wireless Tour Guide System Two Way Tour Guide 4
Micphone(Mic01)


008B  - Directional Simultaneous Interpretation Equipment Wireless Tour Guide System Two Way Tour Guide 5
Micphone(Mic02)







Parameters:

Name
Value
Working frequency:
796.0-821.0MHz,Broadband,the sound quality is better;
Channel quantity:
23;Two-way intercom;
Channel spacing:
250KHz;
Transmitter power:
15dBm;
Receiving sensitivity:
-110dBm(typical);
Working voltage:
3.0-5.0VDC,recycle polymer lithium battery;
Input:
Output:
Input(Transmitter):3.5mm microphone;
Output(receiver):3.5mm headphone
Oscillator:
PLL;
Second harmonic trap:
>40dbc;
Frequency response:
20Hz-16KHz;
Signal to Noise Ratio:
80dB(typical);
Image reject:
>80dB;
Mirror harmonic:
>75dB;
Separation factor:
70dB(typical);
Frequency offset:
<3k;
Distortion factor:
<1%;
Oscillation frequency:
+/-2ppm;
Working current:
Transmitter:≤80mA;
Receiver:≤50mA;
Working distance:
>=250m;
Working temperature:
-20℃—+70℃;
Dimensions:
Length86mm×Width60mm×Height19mm;
Weight:
Transmitter:110g(include battery);
Receiver:95g(include battery);

008B  - Directional Simultaneous Interpretation Equipment Wireless Tour Guide System Two Way Tour Guide 6

Charger 1 for 10(Model:UCG01)



008B  - Directional Simultaneous Interpretation Equipment Wireless Tour Guide System Two Way Tour Guide 7
Headphone(EP02)



008B  - Directional Simultaneous Interpretation Equipment Wireless Tour Guide System Two Way Tour Guide 8
Headphone(EP03)

008B  - Directional Simultaneous Interpretation Equipment Wireless Tour Guide System Two Way Tour Guide 9
Charing box 1 for 30(Model:6BoxC01)
