008B Model Two Way Communication Tour Guide System For Tourist Reception

China HEFEI HUMANTEK. CO., LTD. certification
China HEFEI HUMANTEK. CO., LTD. certification
I'm Online Chat Now

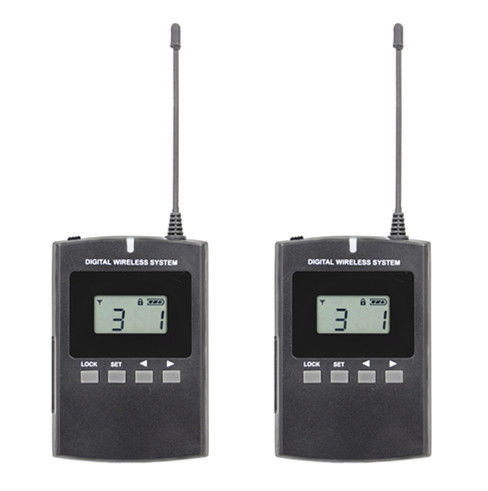

008B Model Two Way Communication Tour Guide System For Tourist Reception

008B Model Two Way Communication Tour Guide System For Tourist Reception
008B Model Two Way Communication Tour Guide System For Tourist Reception 008B Model Two Way Communication Tour Guide System For Tourist Reception 008B Model Two Way Communication Tour Guide System For Tourist Reception 008B Model Two Way Communication Tour Guide System For Tourist Reception 008B Model Two Way Communication Tour Guide System For Tourist Reception 008B Model Two Way Communication Tour Guide System For Tourist Reception

Large Image :  008B Model Two Way Communication Tour Guide System For Tourist Reception

Product Details:
Place of Origin: China
Brand Name: Yingmi
Certification: CE,RoHS
Model Number: 008B
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: packed in carton box
Delivery Time: 7days
Payment Terms: L/C,Paypal
Supply Ability: 2000 pieces per week
Detailed Product Description
Product: Tour Guide Device Color: Black
Componet: Transmitter&Receiver Power: Lithium Battery
Feature: Two Way Application: Teaching / Traning
High Light:

Travel Guide System

,

Digital Radio Guide

800Mhz 008B bi-directional wireless tour guide system for tourist reception

TuMan 8 series device,apply to: wireless team interpretation,simultaneous interpretation,etc.; Mainly used for manned interpreatation: can manual use,also can play pre-recorded audio,that need human to control. We have many models for your choice!
 What's this|

TuMan 008B tour guide system is detrusion by HUMANTEK CO.,LTD,The system adopts the international advanced wireless amplification technology,Use The Wireless Bi-directional tour guide system,the narrator and the audience can interact eachother,can be realized within the team can ask one answer,everyone can hear,the function to fill a gap in the industry!
The dvice contains Transmitter and Receiver;
audio guide

TuMan 008B product feature:



1. Unique two-way radio: avoid one-way explain the poor interaction;

2. Far transmission distance:open field >= 280 m;

3. The through wall effect is good: through concrete wall,brick wall penetration effect;

4. The transmission effect to international level,the leading domestic:Using core technology sound processing,perennial export Europe and the United States and other countries!

audio guide
Appearance can specify the color, printing logo;
or redesign shell.(Larger quantities)

 How to use|


Using graphic:

TuMan Auto Tour Guider

Accessories:

008B Model Two Way Communication Tour Guide System For Tourist Reception 3
Headphone(EP01)


008B Model Two Way Communication Tour Guide System For Tourist Reception 4
Micphone(Mic01)


008B Model Two Way Communication Tour Guide System For Tourist Reception 5
Micphone(Mic02)







Parameters:

Name
Value
Working frequency:
796.0-821.0MHz,Broadband,the sound quality is better;
Channel quantity:
23;Two-way intercom;
Channel spacing:
250KHz;
Transmitter power:
15dBm;
Receiving sensitivity:
-110dBm(typical);
Working voltage:
3.0-5.0VDC,recycle polymer lithium battery;
Input:
Output:
Input(Transmitter):3.5mm microphone;
Output(receiver):3.5mm headphone
Oscillator:
PLL;
Second harmonic trap:
>40dbc;
Frequency response:
20Hz-16KHz;
Signal to Noise Ratio:
80dB(typical);
Image reject:
>80dB;
Mirror harmonic:
>75dB;
Separation factor:
70dB(typical);
Frequency offset:
<3k;
Distortion factor:
<1%;
Oscillation frequency:
+/-2ppm;
Working current:
Transmitter:≤80mA;
Receiver:≤50mA;
Working distance:
>=250m;
Working temperature:
-20℃—+70℃;
Dimensions:
Length86mm×Width60mm×Height19mm;
Weight:
Transmitter:110g(include battery);
Receiver:95g(include battery);

008B Model Two Way Communication Tour Guide System For Tourist Reception 6

Charger 1 for 10(Model:UCG01)



008B Model Two Way Communication Tour Guide System For Tourist Reception 7
Headphone(EP02)



008B Model Two Way Communication Tour Guide System For Tourist Reception 8
Headphone(EP03)

008B Model Two Way Communication Tour Guide System For Tourist Reception 9
Charing box 1 for 30(Model:6BoxC01)





 Technical production line

008B Model Two Way Communication Tour Guide System For Tourist Reception 10




Packaging & Shipping


paste-pic-dp_uuid_nhmu0


Sucessful Case


008B Model Two Way Communication Tour Guide System For Tourist Reception 12


Product atlas


008B Model Two Way Communication Tour Guide System For Tourist Reception 13
