100 Channel 008A Handheld Simultaneous Interpretation Equipment For Scenic Spot

China HEFEI HUMANTEK. CO., LTD. certification
China HEFEI HUMANTEK. CO., LTD. certification
I'm Online Chat Now

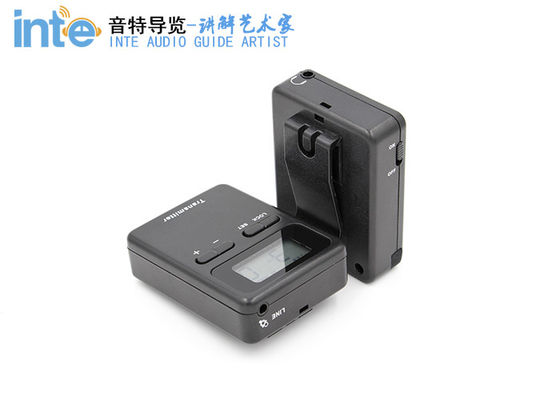

100 Channel 008A Handheld Simultaneous Interpretation Equipment For Scenic Spot

100 Channel 008A Handheld Simultaneous Interpretation Equipment For Scenic Spot
100 Channel 008A Handheld Simultaneous Interpretation Equipment For Scenic Spot 100 Channel 008A Handheld Simultaneous Interpretation Equipment For Scenic Spot 100 Channel 008A Handheld Simultaneous Interpretation Equipment For Scenic Spot 100 Channel 008A Handheld Simultaneous Interpretation Equipment For Scenic Spot

Large Image :  100 Channel 008A Handheld Simultaneous Interpretation Equipment For Scenic Spot

Product Details:
Place of Origin: China
Brand Name: humantek
Certification: CE,RoHS
Model Number: 008A
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: packed in carton box
Delivery Time: 7days
Payment Terms: L/C,Paypal, T/T, Western Union
Detailed Product Description
Product: Tour Guide Device Color: Black
Componet: Transmitter&Receiver Power: Lithium Battery
Feature: High Quality Sound Application: Museum/Scenic Spot
High Light:

Simultaneous Translation Equipment

,

Portable Translation Equipment

100 channel 008A handheld wireless tour guide system for Scenic spot

TuMan 8 series device,apply to: wireless team interpretation,simultaneous interpretation,etc.; Mainly used for manned interpreatation: can manual use,also can play pre-recorded audio,that need human to control. We have many models for your choice!
 What's this|     HumanTek.cn
All Rights.

TuMan 008A tour guide system is detrusion by HUMANTEK CO.,LTD,The system adopts the international advanced wireless amplification technology,to realize the function of intelligent voice explain.The system related equipment light fashionable appearance,convenient to carry.
Can be for the government officials and VIP customer visits,conferences. more suitable for large companies,museums,theme parks,scenic spots and historical sites,such as a tour by boat tour guide use;
The dvice contains Transmitter and Receiver;
audio guide

TuMan 008A product feature:

1. Many channels:dual channel 158 channels;

2. Far transmission distance:open field >= 200m;

3. The through wall effect is good:through concrete wall, brick wall penetration effect;

4. The transmission effect to international level,the leading domestic:Using core technology sound processing, perennial export Europe and the United States and other countries!

audio guide
Appearance can specify the color, printing logo;
or redesign shell.(Larger quantities)

 How to use|


Using graphic:

TuMan Auto Tour Guider

Accessories:

100 Channel 008A Handheld Simultaneous Interpretation Equipment For Scenic Spot 3
Headphone(EP01)


100 Channel 008A Handheld Simultaneous Interpretation Equipment For Scenic Spot 4
Micphone(Mic01)


100 Channel 008A Handheld Simultaneous Interpretation Equipment For Scenic Spot 5
Micphone(Mic02)







Parameters:

Name
Value
Working frequency:
70.25-76.3MHz,794-806MHz,
863-865MHz,902-915MHz,2.4GHz etc.,
Broadband, the sound quality is better;
Channel quantity:
158(high frequency 100+Low frequency 58),
80,64,50 etc.,Different frequency different channel quantities;
Channel spacing:
120KHz,200KHz,350KHz etc;
Transmitter power:
10dBm,20dBm,30dBm etc;
Receiving sensitivity:
-110dBm(typical);
Working voltage:
3.0-5.0VDC,recycle polymer lithium battery;
Input:
Output:
Input(Transmitter):3.5mm microphone;
Output(receiver):3.5mm headphone
Oscillator:
PLL;
Second harmonic trap:
>40dbc;
Frequency response:
20Hz-18KHz;
Signal to Noise Ratio:
80dB(typical);
Image reject:
>80dB;
Mirror harmonic:
>75dB;
Separation factor:
70dB(typical);
Frequency offset:
<3k;
Distortion factor:
<1%;
Oscillation frequency:
+/-2ppm;
Working current:
Transmitter:≤30~80mA;
Receiver:≤50mA;
Working distance:
>=250m;
Working temperature:
-20℃—+70℃;
Dimensions:
Length65mm×Width50mm×Height17mm;
Weight:
50g(battery included);

100 Channel 008A Handheld Simultaneous Interpretation Equipment For Scenic Spot 6

Charger 1 for 10(Model:UCG01)



100 Channel 008A Handheld Simultaneous Interpretation Equipment For Scenic Spot 7
Headphone(EP02)



100 Channel 008A Handheld Simultaneous Interpretation Equipment For Scenic Spot 8
Headphone(EP03)

100 Channel 008A Handheld Simultaneous Interpretation Equipment For Scenic Spot 9
Charing box 1 for 30(Model:6BoxC01)



 Technical production line

100 Channel 008A Handheld Simultaneous Interpretation Equipment For Scenic Spot 10




Packaging & Shipping


paste-pic-dp_uuid_nhmu0


Sucessful Case


100 Channel 008A Handheld Simultaneous Interpretation Equipment For Scenic Spot 12


Product atlas


100 Channel 008A Handheld Simultaneous Interpretation Equipment For Scenic Spot 13
