Product Details:
Place of Origin: China
Brand Name: YingMi
Certification: CE,RoHs
Model Number: R8
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: packed in carton box
Delivery Time: 3-7 days Name Value Working frequency: 860MHz-870MHz; Other frequency can be customize Channel quantity: 100CH; Modulation mode: GPSK; Working distance: >200m; Battery c
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs one month
Detailed Product Description
Brand: YingMi Working Frequency: 860MHz-870MHz
Modulation Mode: GPSK Frequency Response: 20-22K
Working Current: 45mA Receiver Dimensions: 100*50*18mm
Working Time: >9H Power: Lithium Battery
Battery Capacity: 310mAh Modulation: Four Levels Of Circulation
High Light:

Tour Guide System 860MHz

,

Anti Interference Tour Guide System

,

GFSK Wireless Tour Guide System

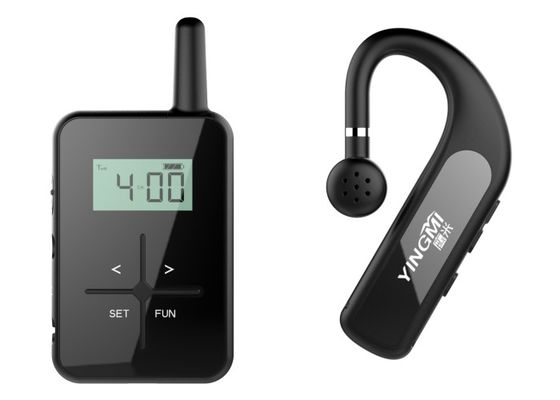

Anti-Interference Ability Is Very Strong Because Using Advanced GFSK



In case of visiting tour like factories, docks and manufacturing companies, there are a lot of inner noisiness. Therefore, it is hard for a guide to lead the group there. If a guide uses our product in this situation, he doesn’t have to divide the group and can provide exact guidance even the big group. Also, our R8 product makes the image of a company to be enhanced and provides impressing tour with using specific guide devices.



R8 Transmitter Parameters:



Name Value
Working frequency: 860MHz-870MHz; Other frequency can be customize
Channel quantity: 100CH;
Modulation mode: GPSK;
Working distance: >200m;
Battery capacity: 250MAH
Dimensions: 100*50*18mm(Including antenna);



R8 Receiver Parameters:



Name Value
Working frequency: 860MHz-870MHz;
Weight 18g
Modulation: Four levels of circulation;
Working current: standby:35mA,working:45mA;
Battery capacity: 1200MAH
Frequency Response: 20-22K;
Dimensions: 73*48*11mm



R8 product feature:



1. Using the universal legal frequency of all countries around the world: 860-870 MHz frequency band ;
2. Using advanced GFSK (Gauss frequency shift keying) modulation mode, anti-interference ability is very strong;
3. Economic environmental protection: polymer lithium battery rechargeable function for more than 6 hours of continuous use;
4. can be simultaneously used as a multi language digital wireless simultaneous interpretation system: digital transmission and digital reception, DVD sound quality effect!



250MAH R8 Wireless Tour Guide System For Scenic Spots Ear Hanging 0

250MAH R8 Wireless Tour Guide System For Scenic Spots Ear Hanging 1



250MAH R8 Wireless Tour Guide System For Scenic Spots Ear Hanging 2250MAH R8 Wireless Tour Guide System For Scenic Spots Ear Hanging 3



Application:



Tour guide
When a guide leads tourists, it is natural to have situation crowded and noisy among tourists.When this situation happens, it isn’t comfortable for tourists to use the heavy and complicated guide devices. Additionally, our product can be made for tourists to concentrate on the tour and for a guide to make a tour successfully.

Simultaneous interpretation
Have you ever experienced to use simultaneous interpretation devices which are difficult and complicated? Our product is direct and convenient product adapted in the international interpretation. It is used in international conference, church, religious charities and so on.



800MHZ 008A Mini Tour Guide Audio System Wireless Audio Guide For Tourist Reception



Recommended Accessories:



Microphone



250MAH R8 Wireless Tour Guide System For Scenic Spots Ear Hanging 5



Charger (1 for 10)



250MAH R8 Wireless Tour Guide System For Scenic Spots Ear Hanging 6



Charging box



250MAH R8 Wireless Tour Guide System For Scenic Spots Ear Hanging 7





Packaging & Shipping:



Packing



Packaging Details: Standard export packing. One unit with one independent box.



Shipping



DHL/FedEx/UPS/EMS: 3-7 workdays



250MAH R8 Wireless Tour Guide System For Scenic Spots Ear Hanging 8



About us:



HEFEI HUMANTEK. CO., LTD.a part of YingTe Group,is a leading manufacturer of audio guide and tour guide system in China,Established in 2002,Located in Electrical and Mechanical Industrial Park of Hefei High-tech Zone,ANHUI,CHINA. With more than 30,000 square meters workshop.We are specialised in producing tourism electronic product,develop and produce intelligent Audio Guide product,and also provide a full range of technical support and services.



With our strong technical strength,Our products have advantages of Long transmission distance,low interference,portable and reliable performance which can be widely used in Tourists,museums,travel companies,factories,government agencies and technology center…



250MAH R8 Wireless Tour Guide System For Scenic Spots Ear Hanging 9



FAQ:



Q1: How many receivers can be used with a transmitter?
A1: Number of connected receivers no limited.

Q2: What are the frequencies in which they work?

A2: Usually is 860-870 , others can be customize .

Q3: What is your range for such tour guide system/interpretation system?

A3: Up to 200 meters.

Q4: How many channels for this tour guide system?

A4: 100 channels

Q5: How many tour groups/teams can use in one tour place?

A5: It depends on the number of channels – the more channels there are ,
the more different number of groups can work in the same time.

Q6: How about your warranty?

A6: 24 months.

Q7: How about your production time?

A7: 3-5 working days for orders below 300 pcs.
5-8 working days for orders below 1000 pcs.

Q8: How about the using time if charge with full battery?

A8: Transmitter: Up to 10 hours. Receiver: Up to 12 hours.

Q9: How about your charge time?

A9: It takes about 2~3 hours to be fully charged.
