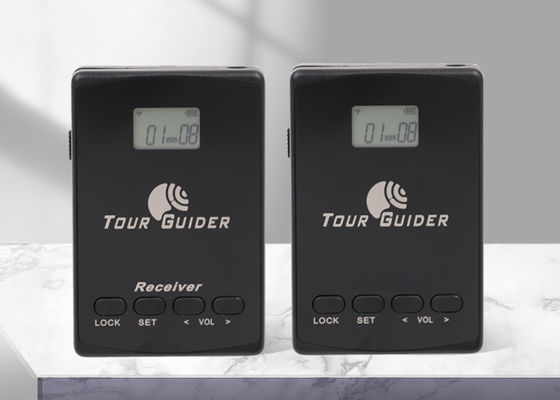

L8 Tour Audio Guide With AAA Battery And Weighing Only 35g

L8 Tour Audio Guide With AAA Battery And Weighing Only 35g
L8 Tour Audio Guide With AAA Battery And Weighing Only 35g L8 Tour Audio Guide With AAA Battery And Weighing Only 35g L8 Tour Audio Guide With AAA Battery And Weighing Only 35g

Large Image :  L8 Tour Audio Guide With AAA Battery And Weighing Only 35g

Product Details:
Place of Origin: China
Brand Name: YingMi
Certification: CE,RoHS
Model Number: L8
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: packed in carton box
Delivery Time: 3-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 pieces per week
Detailed Product Description
Brand: YingMi Receiving Sensitivity: -115dBm(typical)
Second Harmonic: >40dbc Feature: Cost-effective
Power: AAA Battery Application: Tour Guide Reception
Channel Spacing: 323KHz Distance: >=150 Meter
Frequency Response: 300Hz-3KHz Dimensions: 70×48×18mm
High Light:

323KHz Channel Tour Audio Guide

,

AAA Battery Tour Audio Guide

,

AAA Battery Travel Audio Guide

L8 Tour Audio Guide With AAA Battery And Weighing Only 35g



The L8 transmits the audio through the transmission channel, so there is no need to worry about the trouble of noise, and the whispered speech of the explainer can also be accurately conveyed to the receiver. The L8 can also effectively isolate the interference of the surrounding environment, so it is a more appropriate way to use the L8 for reception when multiple teams visit at the same time. The L8 is mainly composed of a transmitter and a receiver.



Product Specification:



Name Value
Working frequency: 400MHz-470MHz,Narrow band (can be customized broadband!);
Channel Quantities: 64:64 teams in the same place,
no interference;
Channel spacing: 323KHz;
Transmitter power: 20dBm;
Receiving sensitivity: -115dBm(typical);
Working voltage: 2.4-3.3VDC,AAA battery;
Input and Output: Input(transmitter):3.5mm microphone;
Output(receiver):3.5mm earphone
Oscillator: PLL;
Second harmonic: >40dbc;
Frequency response: 300Hz-3KHz;
Signal to Noise Ratio: 80dB(typical);
Working current: Transmitter:≤110mA(20dBm);
Receiver:≤35mA;
Distance: >=150 meter;
Dimensions: 70mm×48mm×18mm;
Weight: 35g(without battery)












L8 Tour Audio Guide With AAA Battery And Weighing Only 35g 0

L8 Tour Audio Guide With AAA Battery And Weighing Only 35g 1
Appearance can specify the color,printing logo or redesign shell.(Larger quantities)

YingMi L8 product feature:


1. Dual channel 64 channels;
2. Transmission distance:open field >=150m;
3. The through wall effect is good:through concrete wall,brick wall penetration effect;
4. Channel spacing is 323 kHz:Adjacent channel without interference;

How to use:



Using graphic:

TuMan Auto Tour Guider
Accessories:

L8 Tour Audio Guide With AAA Battery And Weighing Only 35g 3
Headphone(EP01)


L8 Tour Audio Guide With AAA Battery And Weighing Only 35g 4
Micphone(Mic01)


L8 Tour Audio Guide With AAA Battery And Weighing Only 35g 5
Micphone(Mic02)

L8 Tour Audio Guide With AAA Battery And Weighing Only 35g 6

Charing box 1 for 30(Model:6BoxC01)

L8 Tour Audio Guide With AAA Battery And Weighing Only 35g 7Charger 1 for 10(Model:UCG01)



L8 Tour Audio Guide With AAA Battery And Weighing Only 35g 8
AAA battery(Dry Cell)

Packing&Shipping:


paste-pic-dp_uuid_nhmu0


Sucessful Case:


L8 Tour Audio Guide With AAA Battery And Weighing Only 35g 10
