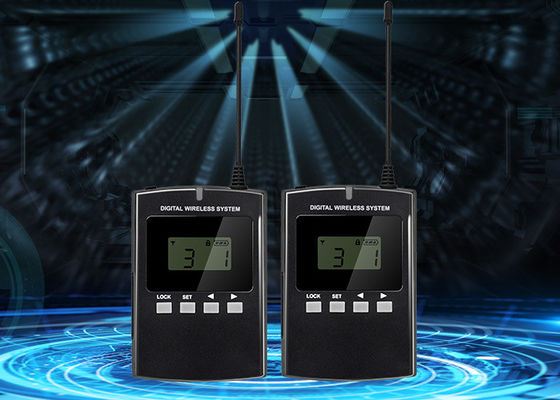

008B Two Way Audio Guide Can Be Ask And Answer 250KHz

008B Two Way Audio Guide Can Be Ask And Answer 250KHz
008B Two Way Audio Guide Can Be Ask And Answer 250KHz 008B Two Way Audio Guide Can Be Ask And Answer 250KHz 008B Two Way Audio Guide Can Be Ask And Answer 250KHz

Large Image :  008B Two Way Audio Guide Can Be Ask And Answer 250KHz

Product Details:
Place of Origin: China
Brand Name: YingMi
Certification: CE,RoHs
Model Number: 008B
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: packed in carton box
Delivery Time: 3-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs for one month
Detailed Product Description
Brand: YingMi Working Frequency: 746-823MHz
Transmitter Power: 15dBm Channel Spacing: 250KHz
Dimensions: 86×60×19mm Power: Lithium Battery
Working Distance: >=250m Warranty: 2 Years
Working Current: ≤80mA Distortion Factor: <1%
High Light:

Lithium Battery Audio Guide

,

250KHz Channel Audio Guide

,

Audio Guide 823MHz

008B Audio Guide Is A Two-Way Audio Guide, Can Be Ask And Answer



008B can realize multiple teams to visit at the same time, explain independently, and do not interfere with each other. Use headphones to listen, so that the visiting environment is noise-free. The operation of 008B is very simple, it can be used by turning on the switch, and it is convenient to carry.


008B Specification:



Name Value
Working frequency: 746-823MHz,Broadband,the sound quality is better;
Channel quantity: 23CH;
Channel spacing: 250KHz;
Transmitter power: 15dBm;
Receiving sensitivity: -110dBm(typical);
Working voltage: 3.0-5.0VDC,recycle polymer lithium battery;
Input: Input(Transmitter):3.5mm microphone;
Output: Output(receiver):3.5mm headphone;
Separation factor: 70dB(typical);
Frequency offset: <3k;
Distortion factor: <1%;
Oscillation frequency: +/-2ppm;
Working current: Transmitter:≤80mA; Receiver:≤50mA;
Working distance: >=250m;
Working temperature: -20℃—+70℃;
Dimensions: 86*60mm*19mm;
Weight: Transmitter:110g(include battery);
Receiver:95g(include battery);


008B product feature:



1. Unique two-way radio: avoid one-way explain the poor interaction;
2. Far transmission distance:open field >= 300 m;
3. The through wall effect is good: through concrete wall,brick wall penetration effect;
4. The transmission effect to international level,the leading domestic:Using core technology sound processing,perennial export Europe and the United States and other countries!
008B Two Way 823MHz Wireless Audio Tour Guide Systems 23 Channel 0
008B Two Way 823MHz Wireless Audio Tour Guide Systems 23 Channel 1
008B Two Way 823MHz Wireless Audio Tour Guide Systems 23 Channel 2
Application:


There are times when easily initiated, two-way tour guide communication is essential during a plant visit. Some of the scenarios for these collaborative group activities include:

  • Staff meetings conducted on plant tour or manufacturing floor
  • New-hire orientation and on-boarding for employee groups
  • Interactive Executive and BOD Walk-Throughs
  • In-house training in processes and procedures
  • On-site safety training meetings
  • Inspection and evaluation tours


800MHZ 008A Mini Tour Guide Audio System Wireless Audio Guide For Tourist Reception


Recommended Accessories:



Microphone wih headphone
008B Two Way 823MHz Wireless Audio Tour Guide Systems 23 Channel 4
Charger (1 for 10)
008B Two Way 823MHz Wireless Audio Tour Guide Systems 23 Channel 5


Packaging & Shipping:



Packing
Packaging Details: Standard export packing. One unit with one independent box.
Shipping
DHL/FedEx/UPS/EMS: 3-7 workdays
008B Two Way 823MHz Wireless Audio Tour Guide Systems 23 Channel 6


Our Service:



Customized Logo

Free logo printing will be offered if order quantity is above 300pcs.
Our Warranty
2 Years warranty for all Transmitter & Receiver.

Spare Parts
A proportion of spare parts will be shipped along with formal orders
