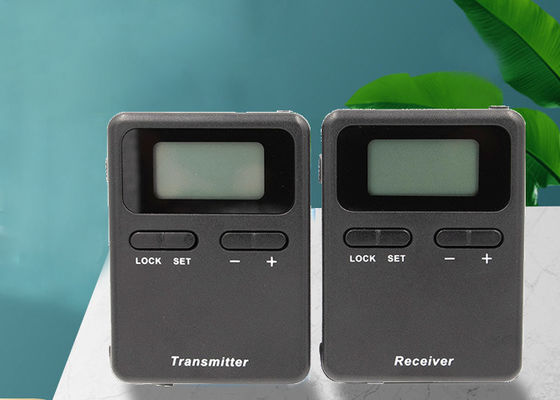

PLL Oscillator Audio Guide Equipment For Museums Reception Scenic Visit

China HEFEI HUMANTEK. CO., LTD. certification
China HEFEI HUMANTEK. CO., LTD. certification
I'm Online Chat Now

PLL Oscillator Audio Guide Equipment For Museums Reception Scenic Visit

PLL Oscillator Audio Guide Equipment For Museums Reception Scenic Visit
PLL Oscillator Audio Guide Equipment For Museums Reception Scenic Visit PLL Oscillator Audio Guide Equipment For Museums Reception Scenic Visit PLL Oscillator Audio Guide Equipment For Museums Reception Scenic Visit PLL Oscillator Audio Guide Equipment For Museums Reception Scenic Visit

Large Image :  PLL Oscillator Audio Guide Equipment For Museums Reception Scenic Visit

Product Details:
Place of Origin: China
Brand Name: YingMi
Certification: CE,RoHs
Model Number: 008A
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: packed in carton box
Delivery Time: 3-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs for one month
Detailed Product Description
Brand: YingMi Power: Lithium Battery
Image Reject: >80dB Frequency Response: 20Hz-18KHz
Working Distance: >250m Dimensions: 65*50*17mm
Oscillator: PLL Working Frequency: 796-821MHz
Warranty: 2 Years Weight: 50g
High Light:

PLL Oscillator Audio Guide Equipment

,

Lithium Battery Audio Guide Equipment

,

20Hz Museum Audio Guide Equipment

Used In Unit Reception, Or Museums, 008A Audio Guide For Scenic Visit



The composition of the 008A is very simple: the transmitter and receiver. Then is the use of 008A, Its usage is also very simple, such as a key to connect, a key off, a key mute and so on. The use of 008A is a lot of occasions, such as the teaching, expert lectures, visit reception, conference explanation, exhibition visit, scenic tourism, team explanation and other places that need to explain and need audience. 008A is encrypted transmission, to further protect the information conveyed by the speaker.



Product Specification:

Name Value
Working frequency: 796-821MHz. Other frequecny can be customize
Channel quantity: 158(high frequency 100+Low frequency 58),
Different frequency different channel quantities;
Receiving sensitivity: -110dBm(typical);
Working voltage: 3.0-5.0VDC,recycle polymer lithium battery;
Input: Input(Transmitter):3.5mm microphone;
Output: Output(receiver):3.5mm headphone
Oscillator: PLL;
Second harmonic trap: >40dbc;
Frequency response: 20Hz-18KHz;
Signal to Noise Ratio: 80dB(typical);
Image reject: >80dB;
Mirror harmonic: >75dB;
Separation factor: 70dB(typical);
Frequency offset: <3k;
Distortion factor: <1%;
Oscillation frequency: +/-2ppm;
Working current: Transmitter:≤30~80mA;Receiver:≤50mA;
Working distance: >=250m;
Working temperature: -20℃—+70℃;
Dimensions: 65*50*17mm;
Weight: 50g(battery included);



Product feature:

1. Many channels:dual channel 100 channels;

2. Far transmission distance:open field >= 250m;

3. The through wall effect is good:through concrete wall, brick wall penetration effect;

4. The transmission effect to international level,the leading domestic:Using core technology sound processing, perennial export Europe and the United States and other countries!



Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 0



Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 1



Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 2

Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 3



Application:



Tour guide
When a guide leads tourists, it is natural to have situation crowded and noisy among tourists.When this situation happens, it isn’t comfortable for tourists to use the heavy and complicated guide devices. Additionally, our product can be made for tourists to concentrate on the tour and for a guide to make a tour successfully.

Simultaneous interpretation
Have you ever experienced to use simultaneous interpretation devices which are difficult and complicated? Our product is direct and convenient product adapted in the international interpretation. It is used in international conference, church, religious charities and so on.

Reception of the inspection
In case of visiting tour like factories, docks and manufacturing companies, there are a lot of inner noisiness. Therefore, it is hard for a guide to lead the group there. If a guide uses our product in this situation, he doesn’t have to divide the group and can provide exact guidance even the big group. Also, our product makes the image of a company to be enhanced and provides impressing tour with using specific guide devices.





800MHZ 008A Mini Tour Guide Audio System Wireless Audio Guide For Tourist Reception



Recommended Accessories:



Microphone



Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 5





Mono headphone



Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 6







Charger (1 for 10)



Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 7



Charging box



Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 8





Packaging & Shipping:



Packing



Packaging Details: Standard export packing. One unit with one independent box.



Shipping



DHL/FedEx/UPS/EMS: 3-7 workdays



Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 9



Our Service:



Customized Logo
Free logo printing
will be offered if order quantity is above 300pcs.



Our Warranty
2 Years warranty for all Transmitter & Receiver.



Spare Parts

A proportion of spare parts will be shipped along with formal orders.
