Audio Guide System Have Unique Two Way Radio 746 - 823MHz

China HEFEI HUMANTEK. CO., LTD. certification
China HEFEI HUMANTEK. CO., LTD. certification
I'm Online Chat Now

Audio Guide System Have Unique Two Way Radio 746 - 823MHz

Audio Guide System Have Unique Two Way Radio 746 - 823MHz
Audio Guide System Have Unique Two Way Radio 746 - 823MHz Audio Guide System Have Unique Two Way Radio 746 - 823MHz Audio Guide System Have Unique Two Way Radio 746 - 823MHz Audio Guide System Have Unique Two Way Radio 746 - 823MHz Audio Guide System Have Unique Two Way Radio 746 - 823MHz

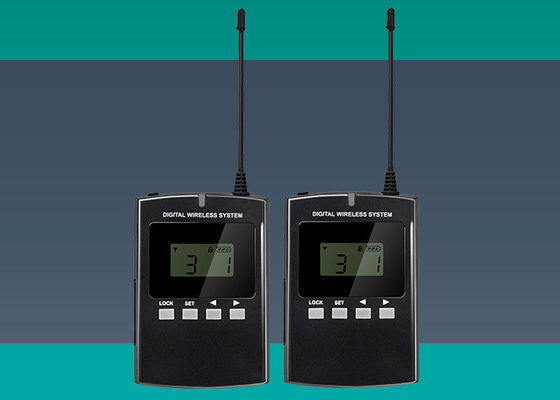

Large Image :  Audio Guide System Have Unique Two Way Radio 746 - 823MHz

Product Details:
Place of Origin: China
Brand Name: YingMi
Certification: CE,RoHs
Model Number: 008B
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: packed in carton box
Delivery Time: 3-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs for one month
Detailed Product Description
Brand: YingMi Working Frequency: 746-823MHz
Channel Quantity: 23CH Oscillation Frequency: +/-2ppm
Dimensions: 86mm×60mm×19mm Separation Factor: 70dB
Working Distance: >=250m Warranty: 2 Years
Channel Spacing: 250KHz Frequency Offset: <3k
High Light:

823MHz Frequency Audio Guide System

,

Two Way Radio Audio Guide System

,

746 MHz Audio Guide System

008B Is Have Unique Two-Way Radio, Avoid One-Way Explain The Poor Interaction



The 008B audio guide is one of the few that supports two-way communication, that is to say, it supports the speaker wearing the transmitter and the audience wearing the receiver to speak at the same time, realizing a question-and-answer method.The team will not interfere with each other, the sound quality is clear and smooth.



008B Specification:



Name Value
Working frequency: 746-823MHz,Broadband,the sound quality is better;
Channel quantity: 23CH;
Channel spacing: 250KHz;
Transmitter power: 15dBm;
Receiving sensitivity: -110dBm(typical);
Working voltage: 3.0-5.0VDC,recycle polymer lithium battery;
Input: Input(Transmitter):3.5mm microphone;
Output: Output(receiver):3.5mm headphone;
Separation factor: 70dB(typical);
Frequency offset: <3k;
Distortion factor: <1%;
Oscillation frequency: +/-2ppm;
Working current: Transmitter:≤80mA; Receiver:≤50mA;
Working distance: >=250m;
Working temperature: -20℃—+70℃;
Dimensions: 86*60mm*19mm;
Weight: Transmitter:110g(include battery);
Receiver:95g(include battery);


008B product feature:



1. Unique two-way radio: avoid one-way explain the poor interaction;
2. Far transmission distance:open field >= 300 m;
3. The through wall effect is good: through concrete wall,brick wall penetration effect;
4. The transmission effect to international level,the leading domestic:Using core technology sound processing,perennial export Europe and the United States and other countries!
008B Two Way 823MHz Wireless Audio Tour Guide Systems 23 Channel 0
008B Two Way 823MHz Wireless Audio Tour Guide Systems 23 Channel 1
008B Two Way 823MHz Wireless Audio Tour Guide Systems 23 Channel 2
Application:


There are times when easily initiated, two-way tour guide communication is essential during a plant visit. Some of the scenarios for these collaborative group activities include:

  • Staff meetings conducted on plant tour or manufacturing floor
  • New-hire orientation and on-boarding for employee groups
  • Interactive Executive and BOD Walk-Throughs
  • In-house training in processes and procedures
  • On-site safety training meetings
  • Inspection and evaluation tours


800MHZ 008A Mini Tour Guide Audio System Wireless Audio Guide For Tourist Reception


Recommended Accessories:



Microphone wih headphone
008B Two Way 823MHz Wireless Audio Tour Guide Systems 23 Channel 4
Charger (1 for 10)
008B Two Way 823MHz Wireless Audio Tour Guide Systems 23 Channel 5


Packaging & Shipping:



Packing
Packaging Details: Standard export packing. One unit with one independent box.
Shipping
DHL/FedEx/UPS/EMS: 3-7 workdays
008B Two Way 823MHz Wireless Audio Tour Guide Systems 23 Channel 6


Our Service:



Customized Logo

Free logo printing will be offered if order quantity is above 300pcs.
Our Warranty
2 Years warranty for all Transmitter & Receiver.

Spare Parts
A proportion of spare parts will be shipped along with formal orders
