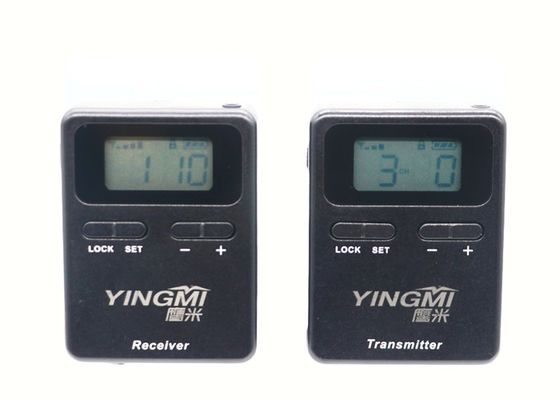

PLL Oscillator Wireless Audio Guide System Distance 200m 158 Channel 008A

PLL Oscillator Wireless Audio Guide System Distance 200m 158 Channel 008A
PLL Oscillator Wireless Audio Guide System Distance 200m 158 Channel 008A PLL Oscillator Wireless Audio Guide System Distance 200m 158 Channel 008A PLL Oscillator Wireless Audio Guide System Distance 200m 158 Channel 008A

Large Image :  PLL Oscillator Wireless Audio Guide System Distance 200m 158 Channel 008A

Product Details:
Place of Origin: China
Brand Name: YingMi
Certification: CE,RoHs
Model Number: 008A
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: packed in carton box
Delivery Time: 3-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs for one month
Detailed Product Description
Working Frequency: 796-821MHz Channel Spacing: 120KHz, 200KHz, 350KHz, Etc
Working Voltage: 3.0-5.0VDC Frequency Response: 20Hz-18KHz
Working Distance: >250m Dimensions: 65mm×50mm×17mm
Weight: 50G (including Lithium Battery) Color: Black
Warranty: 2 Years Oscillator: PLL
High Light:

Wireless Audio Guide System Distance 200m

,

PLL Oscillator Wireless Audio Guide System

,

Wireless Audio Guide System 158 Channel

008A Channel Number Much And Have The Long Transmission Distance, Distance Is Up To 200m



The intelligent speech explanation function is realized by adopting wireless sound amplification technology. The 008A equipment appearance light fashion, convenient to carry, can be used for government officials and VIP customers to visit, provide mobile simultaneous interpretation and navigation services that cannot be solved by traditional methods, the 008A are more suitable for large enterprises, museums, theme parks, historical sites, cruise Tours and other tour guide use.



Product Specification:

Name Value
Working frequency: 796-821MHz. Other frequecny can be customize
Channel quantity: 158(high frequency 100+Low frequency 58),
Different frequency different channel quantities;
Receiving sensitivity: -110dBm(typical);
Working voltage: 3.0-5.0VDC,recycle polymer lithium battery;
Input: Input(Transmitter):3.5mm microphone;
Output: Output(receiver):3.5mm headphone
Oscillator: PLL;
Second harmonic trap: >40dbc;
Frequency response: 20Hz-18KHz;
Signal to Noise Ratio: 80dB(typical);
Image reject: >80dB;
Mirror harmonic: >75dB;
Separation factor: 70dB(typical);
Frequency offset: <3k;
Distortion factor: <1%;
Oscillation frequency: +/-2ppm;
Working current: Transmitter:≤30~80mA;Receiver:≤50mA;
Working distance: >=250m;
Working temperature: -20℃—+70℃;
Dimensions: 65*50*17mm;
Weight: 50g(battery included);



Product feature:



1. Many channels:dual channel 100 channels;

2. Far transmission distance:open field >= 250m;

3. The through wall effect is good:through concrete wall, brick wall penetration effect;

4. The transmission effect to international level,the leading domestic:Using core technology sound processing, perennial export Europe and the United States and other countries!



Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 0



Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 1



Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 2

Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 3



Application:



Tour guide
When a guide leads tourists, it is natural to have situation crowded and noisy among tourists.When this situation happens, it isn’t comfortable for tourists to use the heavy and complicated guide devices. Additionally, our product can be made for tourists to concentrate on the tour and for a guide to make a tour successfully.

Simultaneous interpretation
Have you ever experienced to use simultaneous interpretation devices which are difficult and complicated? Our product is direct and convenient product adapted in the international interpretation. It is used in international conference, church, religious charities and so on.

Reception of the inspection
In case of visiting tour like factories, docks and manufacturing companies, there are a lot of inner noisiness. Therefore, it is hard for a guide to lead the group there. If a guide uses our product in this situation, he doesn’t have to divide the group and can provide exact guidance even the big group. Also, our product makes the image of a company to be enhanced and provides impressing tour with using specific guide devices.





800MHZ 008A Mini Tour Guide Audio System Wireless Audio Guide For Tourist Reception



Recommended Accessories:



Microphone



Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 5





Mono headphone



Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 6







Charger (1 for 10)



Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 7



Charging box



Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 8





Packaging & Shipping:



Packing



Packaging Details: Standard export packing. One unit with one independent box.



Shipping



DHL/FedEx/UPS/EMS: 3-7 workdays



Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 9



Our Service:



Customized Logo
Free logo printing
will be offered if order quantity is above 300pcs.



Our Warranty
2 Years warranty for all Transmitter & Receiver.



Spare Parts

A proportion of spare parts will be shipped along with formal orders.
