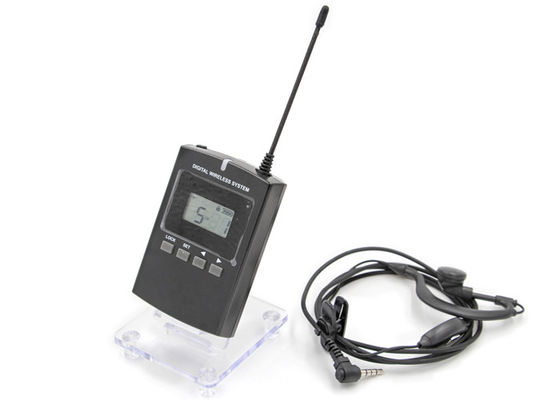

823MHz Wireless Audio Guide System With Dual Speaker Simultaneously Speech

823MHz Wireless Audio Guide System With Dual Speaker Simultaneously Speech
823MHz Wireless Audio Guide System With Dual Speaker Simultaneously Speech 823MHz Wireless Audio Guide System With Dual Speaker Simultaneously Speech

Large Image :  823MHz Wireless Audio Guide System With Dual Speaker Simultaneously Speech

Product Details:
Place of Origin: China
Brand Name: YingMi
Certification: CE,RoHs
Model Number: 008B
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: packed in carton box
Delivery Time: 3-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs for one month
Detailed Product Description
Working Frequency: 746-823MHz Channel Quantity: 23CH
Channel Spacing: 250KHz Transmitter Power: 15dBm
Receiving Sensitivity: -110dBm(typical) Dimensions: 86*60mm*19mm
Weight: Transmitter:110g; Receiver:95g Brand: YingMi
Place Of Origin: China Warranty: 2 Years
High Light:

5.0VDC Wireless Audio Guide System

,

823MHz Wireless Audio Tour Guide Systems

,

Simultaneously Speech Wireless Audio Guide System

008B With Dual - Speaker Function, Support Transmitter And Receiver Simultaneously Speech



008B is not as loud as the noise of the loudspeaker, and the 008B can also support multilingual interpretation, even if the audience is foreign, not afraid of different languages. And each channel of 008B belongs to a single ID, regardless of the number of channels, confidentiality is strong, strong ability to resist various electromagnetic environment interference, transmission signal stability.



008B Specification:



Name Value
Working frequency: 746-823MHz,Broadband,the sound quality is better;
Channel quantity: 23CH;
Channel spacing: 250KHz;
Transmitter power: 15dBm;
Receiving sensitivity: -110dBm(typical);
Working voltage: 3.0-5.0VDC,recycle polymer lithium battery;
Input: Input(Transmitter):3.5mm microphone;
Output: Output(receiver):3.5mm headphone;
Separation factor: 70dB(typical);
Frequency offset: <3k;
Distortion factor: <1%;
Oscillation frequency: +/-2ppm;
Working current: Transmitter:≤80mA; Receiver:≤50mA;
Working distance: >=250m;
Working temperature: -20℃—+70℃;
Dimensions: 86*60mm*19mm;
Weight: Transmitter:110g(include battery);
Receiver:95g(include battery);


008B product feature:


1. Unique two-way radio: avoid one-way explain the poor interaction;
2. Far transmission distance:open field >= 300 m;
3. The through wall effect is good: through concrete wall,brick wall penetration effect;
4. The transmission effect to international level,the leading domestic:Using core technology sound processing,perennial export Europe and the United States and other countries!
008B Two Way 823MHz Wireless Audio Tour Guide Systems 23 Channel 0
008B Two Way 823MHz Wireless Audio Tour Guide Systems 23 Channel 1
008B Two Way 823MHz Wireless Audio Tour Guide Systems 23 Channel 2
Application:


There are times when easily initiated, two-way tour guide communication is essential during a plant visit. Some of the scenarios for these collaborative group activities include:

  • Staff meetings conducted on plant tour or manufacturing floor
  • New-hire orientation and on-boarding for employee groups
  • Interactive Executive and BOD Walk-Throughs
  • In-house training in processes and procedures
  • On-site safety training meetings
  • Inspection and evaluation tours


800MHZ 008A Mini Tour Guide Audio System Wireless Audio Guide For Tourist Reception


Recommended Accessories:



Microphone wih headphone
008B Two Way 823MHz Wireless Audio Tour Guide Systems 23 Channel 4
Charger (1 for 10)
008B Two Way 823MHz Wireless Audio Tour Guide Systems 23 Channel 5


Packaging & Shipping:



Packing
Packaging Details: Standard export packing. One unit with one independent box.
Shipping
DHL/FedEx/UPS/EMS: 3-7 workdays
008B Two Way 823MHz Wireless Audio Tour Guide Systems 23 Channel 6


Our Service:


Customized Logo
Free logo printing
will be offered if order quantity is above 300pcs.
Our Warranty
2 Years warranty for all Transmitter & Receiver.

Spare Parts
A proportion of spare parts will be shipped along with formal orders
