Product Details:
Payment & Shipping Terms:
|
| Weight: | 95g | Working Distance: | >=250m |
|---|---|---|---|
| Transmitter Power: | 15dBm | Working Frequency: | 746-823MHz |
| Channel Quantity: | 23CH | Color: | Black |
| Brand: | YingMi | Frequency Offset: | <3k |
| Distortion Factor: | <1% | Dimensions: | 86*60mm*19mm |
| High Light: | 15dBm Wireless Audio Guide System,23CH Wireless Audio Guide System,823MHz Audio Guide Device |
||

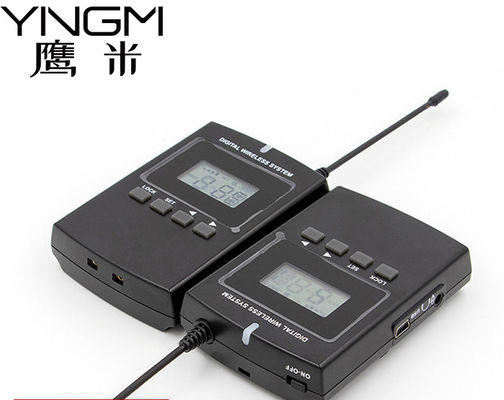

008B to achieve the interpreter and audience interaction, is a two-way audio guide
As an important auxiliary equipment in tourism, translation, training and other work, the wireless interpreter carries the receiver with the audience regardless of the front and back position. Within the range of 0-200 meters away from the interpreter, everyone can clearly hear every word of the interpreter, and the reception quality will not be affected if they walk freely.
008B Specification:
| Name | Value |
| Working frequency: | 746-823MHz,Broadband,the sound quality is better; |
| Channel quantity: | 23CH; |
| Channel spacing: | 250KHz; |
| Transmitter power: | 15dBm; |
| Receiving sensitivity: | -110dBm(typical); |
| Working voltage: | 3.0-5.0VDC,recycle polymer lithium battery; |
| Input: | Input(Transmitter):3.5mm microphone; |
| Output: | Output(receiver):3.5mm headphone; |
| Separation factor: | 70dB(typical); |
| Frequency offset: | <3k; |
| Distortion factor: | <1%; |
| Oscillation frequency: | +/-2ppm; |
| Working current: | Transmitter:≤80mA; Receiver:≤50mA; |
| Working distance: | >=250m; |
| Working temperature: | -20℃—+70℃; |
| Dimensions: | 86*60mm*19mm; |
| Weight: | Transmitter:110g(include battery); Receiver:95g(include battery); |
008B product feature:
1. Unique two-way radio: avoid one-way explain the poor interaction;
2. Far transmission distance:open field >= 300 m;
3. The through wall effect is good: through concrete wall,brick wall penetration effect;
4. The transmission effect to international level,the leading domestic:Using core technology sound processing,perennial export Europe and the United States and other countries!
Application:
There are times when easily initiated, two-way tour guide communication is essential during a plant visit. Some of the scenarios for these collaborative group activities include:
Recommended Accessories:
Microphone wih headphone
Charger (1 for 10)
Packaging & Shipping:
Packing
Packaging Details: Standard export packing. One unit with one independent box.
Shipping
DHL/FedEx/UPS/EMS: 3-7 workdays
Our Service:
Customized Logo
Free logo printing will be offered if order quantity is above 300pcs.
Our Warranty
2 Years warranty for all Transmitter & Receiver.
Spare Parts
A proportion of spare parts will be shipped along with formal orders
