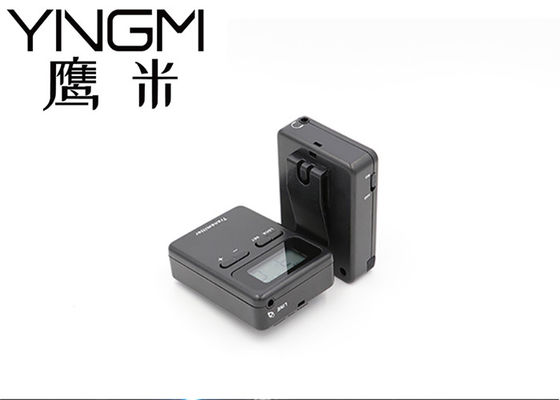

Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology

MOQ:	1 pcs
Price:	Negotiation
Standard Packaging:	packed in carton box
Delivery Period:	3-7 days
Payment Method:	L/C, T/T, Western Union, MoneyGram
Supply Capacity:	10000pcs for one month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

YingMi

Certification

CE,RoHs

Model Number

Oscillato:

Storage Channel:

Frequency Range:

796-821MHz

Dimensions:

65*50*17mm

Color:

Black

Warranty:

2 Years

Application:

Factory Visits/museums And So On

Type:

Weight:

Brand:

YingMi

Highlight:

18KHz Museum Audio Guide System

158 Channel Museum Audio Guide System

Black Museum Audio Guide System

Product Description

Using advanced wireless sound amplification technology, signal distance is far

The signal of 008A product can reach up to 280 meters, and the sound quality and distance are especially excellent in large production factories, environments with large passenger flow and noisy scenic spots.

Product Specification:

Name	Value
Working frequency:	796-821MHz. Other frequecny can be customize
Channel quantity:	158(high frequency 100+Low frequency 58), Different frequency different channel quantities;
Receiving sensitivity:	-110dBm(typical);
Working voltage:	3.0-5.0VDC,recycle polymer lithium battery;
Input:	Input(Transmitter):3.5mm microphone;
Output:	Output(receiver):3.5mm headphone
Oscillator:	PLL;
Second harmonic trap:	>40dbc;
Frequency response:	20Hz-18KHz;
Signal to Noise Ratio:	80dB(typical);
Image reject:	>80dB;
Mirror harmonic:	>75dB;
Separation factor:	70dB(typical);
Frequency offset:	<3k;
Distortion factor:	<1%;
Oscillation frequency:	+/-2ppm;
Working current:	Transmitter:≤30~80mA;Receiver:≤50mA;
Working distance:	>=250m;
Working temperature:	-20℃—+70℃;
Dimensions:	655017mm;
Weight:	50g(battery included);

Product feature:

1. Many channels:dual channel 100 channels;

2. Far transmission distance:open field >= 250m;

3. The through wall effect is good:through concrete wall, brick wall penetration effect;

4. The transmission effect to international level,the leading domestic:Using core technology sound processing, perennial export Europe and the United States and other countries!

Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 0

Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 1

Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 2

Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 3

Application:

Tour guide
When a guide leads tourists, it is natural to have situation crowded and noisy among tourists.When this situation happens, it isn’t comfortable for tourists to use the heavy and complicated guide devices. Additionally, our product can be made for tourists to concentrate on the tour and for a guide to make a tour successfully.

Simultaneous interpretation
Have you ever experienced to use simultaneous interpretation devices which are difficult and complicated? Our product is direct and convenient product adapted in the international interpretation. It is used in international conference, church, religious charities and so on.

Reception of the inspection
In case of visiting tour like factories, docks and manufacturing companies, there are a lot of inner noisiness. Therefore, it is hard for a guide to lead the group there. If a guide uses our product in this situation, he doesn’t have to divide the group and can provide exact guidance even the big group. Also, our product makes the image of a company to be enhanced and provides impressing tour with using specific guide devices.

Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 4

Recommended Accessories:

Microphone

Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 5

Mono headphone

Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 6

Charger (1 for 10)

Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 7

Charging box

Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 8

Packaging & Shipping:

Packing

Packaging Details: Standard export packing. One unit with one independent box.

Shipping

DHL/FedEx/UPS/EMS: 3-7 workdays

Wireless 158 Channel Museum Audio Guide System Sound Amplification Technology 9

Our Service:

Customized Logo
Free logo printing will be offered if order quantity is above 300pcs.

Our Warranty
2 Years warranty for all Transmitter & Receiver.

Spare Parts

A proportion of spare parts will be shipped along with formal orders.
