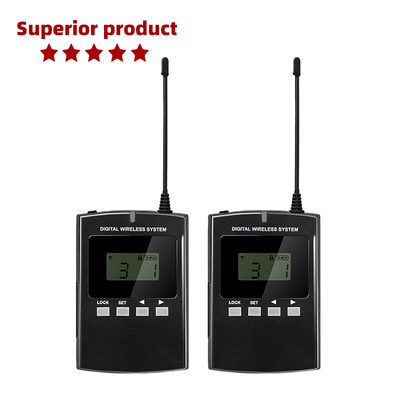

Two-way style 008B audio guide device with intercom function

Products

Simultaneous Interpretation Equipment

Wireless Horse Instruction System

Hospital Pager System

Mrs. Tina

hmautoguide@gmail.com

86--18056004511

Contact Now

Two-way style 008B audio guide device with intercom function

MOQ:	50pcs
Price:	negotiation
Standard Packaging:	packed in carton box
Delivery Period:	3-7 days
Payment Method:	L/C, T/T, Western Union, MoneyGram
Supply Capacity:	10000pcs for one month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

YingMi

Certification

CE,RoHs

Model Number

Brand:

YingMi

Working Frequency:

746-823MHz

Channel Quantity:

Channel Spacing:

250KHz

Dimensions:

86×60×19mm

Separation Factor:

Working Distance:

>=250m

Warranty:

Lifetime

Input:

3.5mm Microphone

Transmitter Power:

15dBm

Product Description

008B Is Used For Reception Occasions And Has The Function Of Two-Way Communication

008B has transmitter and receiver, the audio guide device uses the transmitter to speak, and the tourists wear the receiver to listen. 008B has an audio transmission channel, so the tour guide does not need to be very loud when speaking with a group, as long as the volume is the same as the usual speech volume, it can be clearly heard by tourists through the channel, and tourists can also adjust the size according to their listening habits.

Audio guide device 008B Specification:

Name	Value
Working frequency:	746-823MHz,Broadband,the sound quality is better;
Channel quantity:	23CH;
Channel spacing:	250KHz;
Transmitter power:	15dBm;
Receiving sensitivity:	-110dBm(typical);
Working voltage:	3.0-5.0VDC,recycle polymer lithium battery;
Input:	Input(Transmitter):3.5mm microphone;
Output:	Output(receiver):3.5mm headphone;
Separation factor:	70dB(typical);
Frequency offset:	<3k;
Distortion factor:	<1%;
Oscillation frequency:	+/-2ppm;
Working current:	Transmitter:≤80mA; Receiver:≤50mA;
Working distance:	>=250m;
Working temperature:	-20℃—+70℃;
Dimensions:	8660mm19mm;
Weight:	Transmitter:100g(include battery); Receiver:100g(include battery);

Two-way style 008B audio guide device with intercom function 1
008B Audio guide device feature :

1) Adopts wireless frequencies used in all countries of the world;
2) Adopts advanced modulation methods, with strong anti-interference ability;
3) Multiple channels with memory;
4) Digital wireless simultaneous interpretation system in multiple languages;
5) Supports self-service manual frequency matching, one-button shutdown, and volume adjustment;
6) Compatible with all current audio format inputs;
7) 008B supports multi-party intercom (tourists can ask questions and interact with the guide in the channel)
Two-way style 008B audio guide device with intercom function 2

Audio guide device 008B application

There are times when easily initiated, two-way audio guide device communication is essential during a plant visit. Some of the scenarios for these collaborative group activities include:

Staff meetings conducted on plant tour or manufacturing floor
New-hire orientation and on-boarding for employee groups
Interactive Executive and BOD Walk-Throughs
In-house training in processes and procedures
On-site safety training meetings
Inspection and evaluation tours

Two-way style 008B audio guide device with intercom function 3

Audio guide device 008B recommened accessories

Microphone wih headphone
Two-way style 008B audio guide device with intercom function 5
Charger (1 for 10)

Packing and shipping

Packing
Packaging Details: Standard export packing. One unit with one independent box.
Shipping
DHL/FedEx/UPS/EMS: 3-7 workdays
Two-way style 008B audio guide device with intercom function 7

Our service :

Customized Logo

Free logo printing will be offered if order quantity is above 300pcs.
Our Warranty
Lifetime warranty for all Transmitter & Receiver.
Spare Parts
A proportion of spare parts will be shipped along with formal orders

Two-way style 008B audio guide device with intercom function 8

FAQ

Q1: How many receivers can be used with a transmitter?
A1: Number of connected receivers no limited

Q2: What are the frequencies in which they work?

A2: Usually is 796-821 , others can be customize .

Q3: What is your range for such tour guide system/interpretation system?

A3: Up to 200 meters.

Q4: How many channels for this tour guide system?

A4: 150 channels

Q5: How many tour groups/teams can use in one tour place?

A5: It depends on the number of channels – the more channels there are ,
the more different number of groups can work in the same time.

Q6: How about your warranty?

A6: lifetime

Q7: How about your production time?

A7: 3-5 working days for orders below 300 pcs.
5-8 working days for orders below 1000 pcs.

Q8: How about your charge time?

A8: It takes about 2~3 hours to be fully charged.
