Museum / Travelling Portable Tour Audio Guide System Transmitter And Receiver

Name: Museum / Travelling Portable Tour Audio Guide System Transmitter And Receiver
Brand: Yingmi
SKU: 008A
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (179 reviews)

Large Image : Museum / Travelling Portable Tour Audio Guide System Transmitter And Receiver

Product Details:

Place of Origin:	China
Brand Name:	Yingmi
Certification:	CE,RoHS
Model Number:	008A

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	negotiation
Packaging Details:	packed in carton box
Delivery Time:	7 days
Payment Terms:	L/C,Paypal

Contact Now

Detailed Product Description

Color:

Black

Material:

Blank Or Printed

Working Frequency:

902-915MHz,2.4GHz

Working Distance:

250 Meter

High Light:

audio tour guide system

audio tour guide equipment

008A Portable Wireless Voice Transmitter Buying Team Audio Guide System

TuMan 8 series device,apply to: wireless team interpretation,simultaneous interpretation,etc.; Mainly used for manned interpreatation: can manual use,also can play pre-recorded audio,that need human to control. We have many models for your choice!

What's this|

HumanTek.cn
All Rights.

TuMan 008A tour guide system is detrusion by HUMANTEK CO.,LTD,The system adopts the international advanced wireless amplification technology,to realize the function of intelligent voice explain.The system related equipment light fashionable appearance,convenient to carry.
Can be for the government officials and VIP customer visits,conferences. more suitable for large companies,museums,theme parks,scenic spots and historical sites,such as a tour by boat tour guide use;

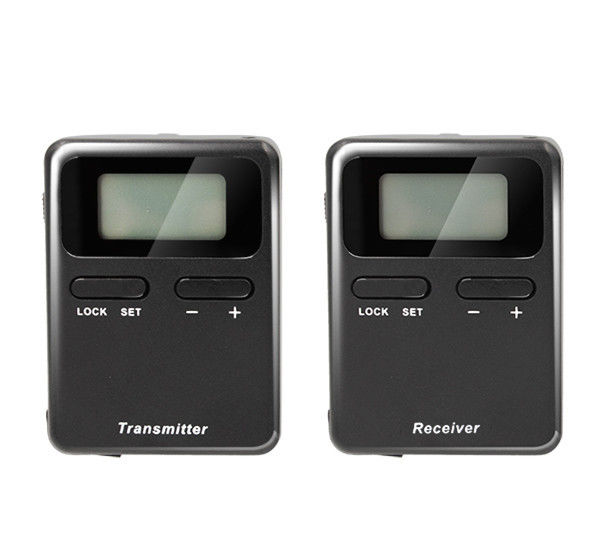

The dvice contains Transmitter and Receiver;

TuMan 008A product feature:

1. Many channels:dual channel 158 channels;
2. Far transmission distance:open field >= 200m;
3. The through wall effect is good:through concrete wall, brick wall penetration effect;
4. The transmission effect to international level,the leading domestic:Using core technology sound processing, perennial export Europe and the United States and other countries!

Appearance can specify the color, printing logo;
or redesign shell.(Larger quantities)

How to use|

Using graphic:

TuMan Auto Tour Guider

Accessories:
Museum / Travelling Portable Tour Audio Guide System Transmitter And Receiver 3
Headphone(EP01)

Micphone(Mic01)

Micphone(Mic02)

Parameters:

Name	Value
Working frequency:	70.25-76.3MHz,794-806MHz, 863-865MHz,902-915MHz,2.4GHz etc., Broadband, the sound quality is better;
Channel quantity:	158(high frequency 100+Low frequency 58), 80,64,50 etc.,Different frequency different channel quantities;
Channel spacing:	120KHz,200KHz,350KHz etc;
Transmitter power:	10dBm,20dBm,30dBm etc;
Receiving sensitivity:	-110dBm(typical);
Working voltage:	3.0-5.0VDC,recycle polymer lithium battery;
Input: Output:	Input(Transmitter):3.5mm microphone; Output(receiver):3.5mm headphone
Oscillator:	PLL;
Second harmonic trap:	>40dbc;
Frequency response:	20Hz-18KHz;
Signal to Noise Ratio:	80dB(typical);
Image reject:	>80dB;
Mirror harmonic:	>75dB;
Separation factor:	70dB(typical);
Frequency offset:	<3k;
Distortion factor:	<1%;
Oscillation frequency:	+/-2ppm;
Working current:	Transmitter:≤30~80mA; Receiver:≤50mA;
Working distance:	>=250m;
Working temperature:	-20℃—+70℃;
Dimensions:	Length65mm×Width50mm×Height17mm;
Weight:	50g(battery included);

Museum / Travelling Portable Tour Audio Guide System Transmitter And Receiver 6
Charger 1 for 10(Model:UCG01)

Headphone(EP02)

Headphone(EP03)

Charing box 1 for 30(Model:6BoxC01)

Technical production line
Museum / Travelling Portable Tour Audio Guide System Transmitter And Receiver 10

Packaging & Shipping

paste-pic-dp_uuid_nhmu0

Sucessful Case

Museum / Travelling Portable Tour Audio Guide System Transmitter And Receiver 12

Product atlas

Museum / Travelling Portable Tour Audio Guide System Transmitter And Receiver 13
