008B Bi - Directional Wireless Audio Guide System Travel Guide System For Museum

Good quality Wireless Tour Guide System for sales
Good quality Wireless Tour Guide System for sales
I'm Online Chat Now

008B Bi - Directional Wireless Audio Guide System Travel Guide System For Museum

China 008B Bi - Directional Wireless Audio Guide System Travel Guide System For Museum supplier
008B Bi - Directional Wireless Audio Guide System Travel Guide System For Museum supplier 008B Bi - Directional Wireless Audio Guide System Travel Guide System For Museum supplier 008B Bi - Directional Wireless Audio Guide System Travel Guide System For Museum supplier

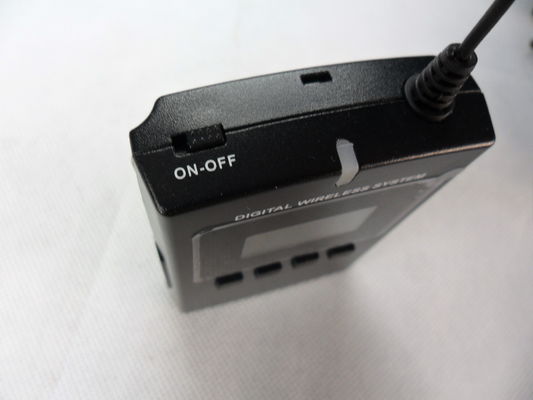

Large Image :  008B Bi - Directional Wireless Audio Guide System Travel Guide System For Museum

Product Details:

Place of Origin: China
Brand Name: humantek
Certification: CE,RoHS
Model Number: 008B

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: packed in carton box
Delivery Time: 7days
Payment Terms: L/C,Paypal
Supply Ability: 2000 pieces per week
Contact Now
Detailed Product Description
Product: Tour Guide Device Color: Black
Componet: Transmitter&Receiver Power: Lithium Battery
Feature: Bi-directional Application: Teaching/Traning

Reasonable price 008B bi-directional wireless tour guide system for museum

TuMan 8 series device,apply to: wireless team interpretation,simultaneous interpretation,etc.; Mainly used for manned interpreatation: can manual use,also can play pre-recorded audio,that need human to control. We have many models for your choice!
 What's this|

TuMan 008B tour guide system is detrusion by HUMANTEK CO.,LTD,The system adopts the international advanced wireless amplification technology,Use The Wireless Bi-directional tour guide system,the narrator and the audience can interact eachother,can be realized within the team can ask one answer,everyone can hear,the function to fill a gap in the industry!
The dvice contains Transmitter and Receiver;
audio guide

TuMan 008B product feature:



1. Unique two-way radio: avoid one-way explain the poor interaction;

2. Far transmission distance:open field >= 280 m;

3. The through wall effect is good: through concrete wall,brick wall penetration effect;

4. The transmission effect to international level,the leading domestic:Using core technology sound processing,perennial export Europe and the United States and other countries!

audio guide
Appearance can specify the color, printing logo;
or redesign shell.(Larger quantities)

 How to use|


Using graphic:

TuMan Auto Tour Guider

Accessories:

008B Bi - Directional Wireless Audio Guide System Travel Guide System For Museum
Headphone(EP01)


008B Bi - Directional Wireless Audio Guide System Travel Guide System For Museum
Micphone(Mic01)


008B Bi - Directional Wireless Audio Guide System Travel Guide System For Museum
Micphone(Mic02)







Parameters:

Name
Value
Working frequency:
796.0-821.0MHz,Broadband,the sound quality is better;
Channel quantity:
23;Two-way intercom;
Channel spacing:
250KHz;
Transmitter power:
15dBm;
Receiving sensitivity:
-110dBm(typical);
Working voltage:
3.0-5.0VDC,recycle polymer lithium battery;
Input:
Output:
Input(Transmitter):3.5mm microphone;
Output(receiver):3.5mm headphone
Oscillator:
PLL;
Second harmonic trap:
>40dbc;
Frequency response:
20Hz-16KHz;
Signal to Noise Ratio:
80dB(typical);
Image reject:
>80dB;
Mirror harmonic:
>75dB;
Separation factor:
70dB(typical);
Frequency offset:
<3k;
Distortion factor:
<1%;
Oscillation frequency:
+/-2ppm;
Working current:
Transmitter:≤80mA;
Receiver:≤50mA;
Working distance:
>=250m;
Working temperature:
-20℃—+70℃;
Dimensions:
Length86mm×Width60mm×Height19mm;
Weight:
Transmitter:110g(include battery);
Receiver:95g(include battery);

008B Bi - Directional Wireless Audio Guide System Travel Guide System For Museum

Charger 1 for 10(Model:UCG01)



008B Bi - Directional Wireless Audio Guide System Travel Guide System For Museum
Headphone(EP02)



008B Bi - Directional Wireless Audio Guide System Travel Guide System For Museum
Headphone(EP03)

008B Bi - Directional Wireless Audio Guide System Travel Guide System For Museum
Charing box 1 for 30(Model:6BoxC01)





 Technical production line

008B Bi - Directional Wireless Audio Guide System Travel Guide System For Museum




Packaging & Shipping


paste-pic-dp_uuid_nhmu0


Sucessful Case


008B Bi - Directional Wireless Audio Guide System Travel Guide System For Museum


Product atlas


008B Bi - Directional Wireless Audio Guide System Travel Guide System For Museum
